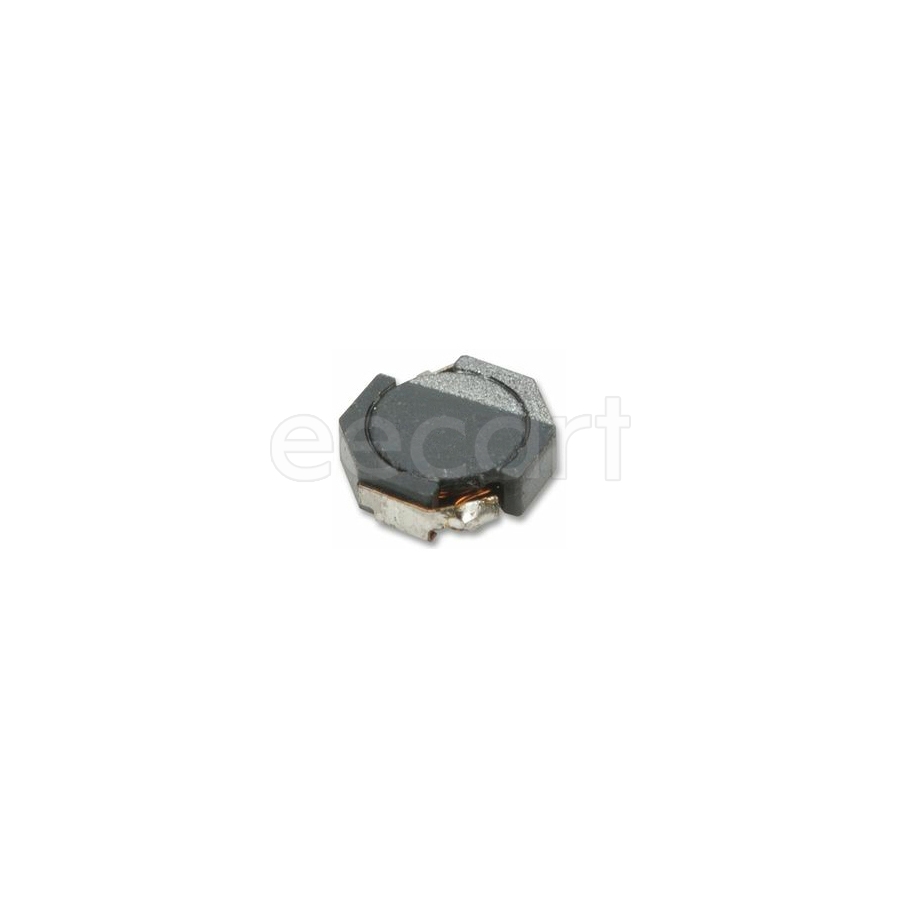

VLF4012AT-100MR79
Manufacturer:
TDK Corporation
Mfr.Part #:
VLF4012AT-100MR79
Datasheet:
Description:
Fixed Inductors 3.70mmL×3.50mmW×1.20mmH SMD/SMT 10 µH 20 % 790 mA 350 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.2 mm |
| Length | 3.7084 mm |
| Width | 3.5052 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 300 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 1.2 mm |
| Packaging | Reel |
| Depth | 3.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 790 mA |
| DC Resistance (DCR) | 350 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Obsolete (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 790 mA |
| inductance tolerance | 20 % |
| Max DC Current | 800 mA |
| DC Current | 800 mA |
| Saturation Current | 800 mA |
| Type | Wirewound |
